The Spire™ PEEK IBF System combines versatility with simplicity in one implant family. Precision machined from PEEK polymer, the family of implants support both PLIF and TLIF surgical approaches.
Versatility and simplicity combined

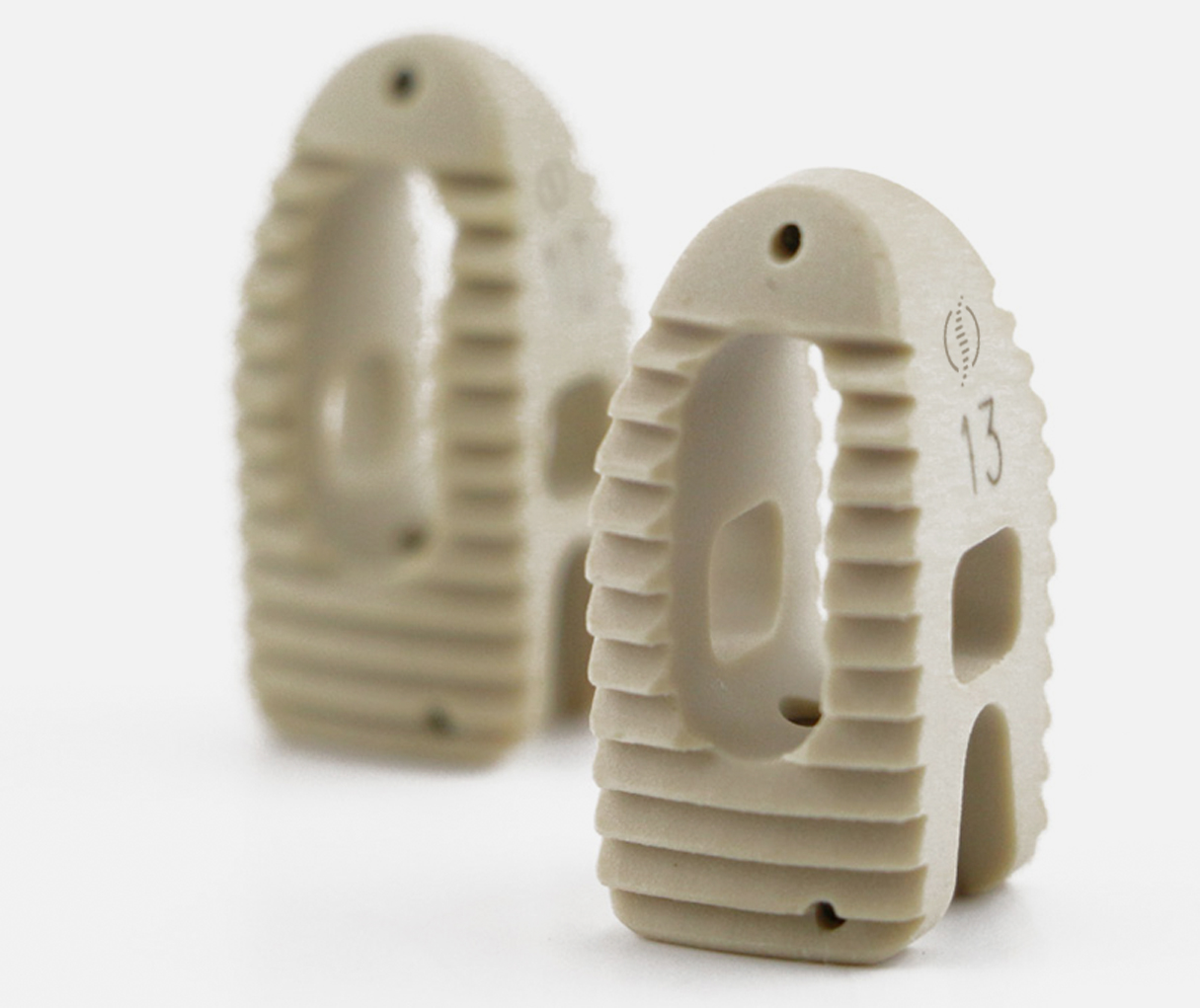

The Spire™ PEEK IBF System combines versatility with simplicity in one implant family. Precision machined from PEEK polymer, the family of implants support both PLIF and TLIF surgical approaches. Large graft windows and aggressive, back angled teeth are common features throughout the implant family.
Broad Implant Offering to Match Patient Needs
- Straight spacers to support PLIF and TLIF surgical approaches
• 9 mm wide x 22 mm, 26 mm, and 30 mm lengths
• Parallel and 7° lordotic
• 6 mm through 16 mm heights - Curved spacers to support TLIF surgical approach
• Two footprints: 9.5 mm wide x 22 mm long
and 9.5 mm wide x 28 mm long
• Parallel and 5° lordotic
• 6 mm through 16 mm heights
Contoured, Low Profile Construct
- Back-angled teeth provide resistance to migration
- Beveled lead-in surfaces for easier insertion
- Large graft windows
- Large radiographic markers to aid final positioning
Simplified Instrument Set

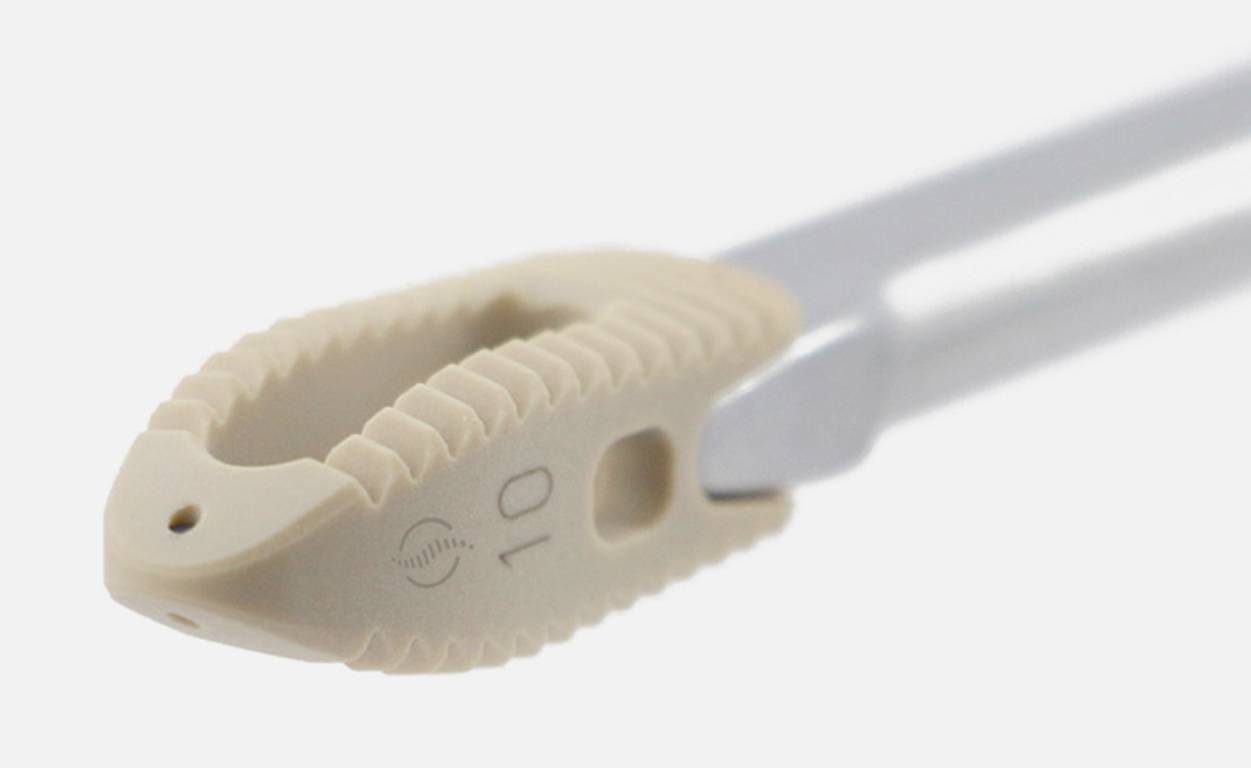

- Easy-to-attach Inserter
- Full range of trials for proper sizing of implant height
- Full range of aggressive rasps, shavers and paddle distractors for disc prep
- Entire set in one sterilization tray
